Casting capacity
Die Casting Capabilities
Review alloys, machine capacity, part dimensions and inspection requirements. Feasibility and acceptance criteria are confirmed for the specified drawing revision and manufacturing route.
The references distinguish routine casting work from features that need a separate project review or tooling trial. Alloy, projected area, geometry, tooling and delivery condition determine which requirements can be achieved together.
View size & weight details- Alloy families for review
- Aluminum, zinc, magnesium and copper alloys; grade and process confirmed for each project
- Machine clamping force
- 180–2,500 metric ton-force (tf); 11 machines
- Part size reference
- Part envelope is reviewed from the drawing, projected area and tooling fit; parts below 50 mm can also be assessed.
- Routine net casting weights
- Aluminum: 0.05–10 kg; zinc: 0.005–2 kg, measured after gate and runner removal. Larger aluminum castings and zinc micro-parts receive a separate project review.
Wall thickness, tolerances & inspection details
- Main walls & local thin-wall review
- Typical main walls: aluminum 1.5–4.5 mm; zinc 0.8–2.0 mm. A local 0.7 mm target is considered mainly for Zamak zinc with short flow paths and requires tooling trials.
- Dimensional tolerances by stage
- Aluminum as-cast controlled features: typically ±0.05–±0.15 mm; general structural dimensions: ±0.10–±0.30 mm. CNC critical dimensions: ±0.02–±0.05 mm. Achieving ±0.02 mm requires fixture and process review; parting-line dimensions are assessed separately.
- Flatness
- Specify the tolerance, controlled surface and measurement setup on the drawing or inspection plan
- Surface roughness by stage
- Typical as-cast surfaces: Ra 3.2–6.3 μm. Ra 0.8 μm is assessed for specified mating or sealing surfaces on aluminum or zinc after CNC finish milling, finish turning or polishing, with process and measurement conditions agreed.
- Inspection methods for review

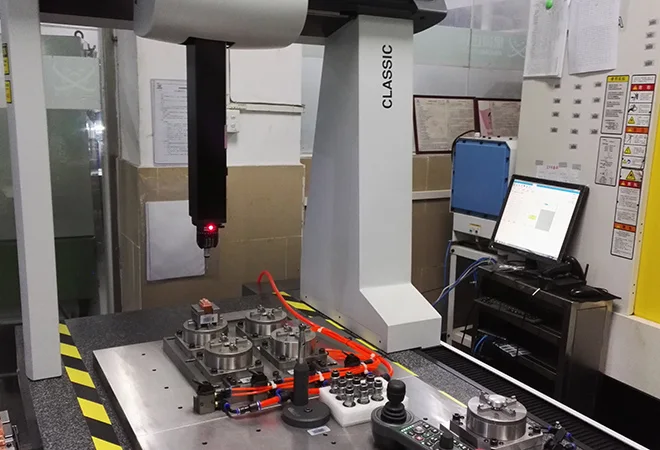

- Coordinate measuring machine (CMM), surface roughness tester, hardness tester and go/no-go gauges; method and availability confirmed for the project
- Quality system requirements
- Identify any ISO 9001 or IATF 16949 requirement in the RFQ. Applicable certification, site and scope must be confirmed
Materials in context
Supported Casting Alloys
Balance weight, strength, temperature, finish and total part cost. Explore each alloy family, then confirm the grade and production route against your drawing.
Weight & structural integration
Aluminum Die Casting

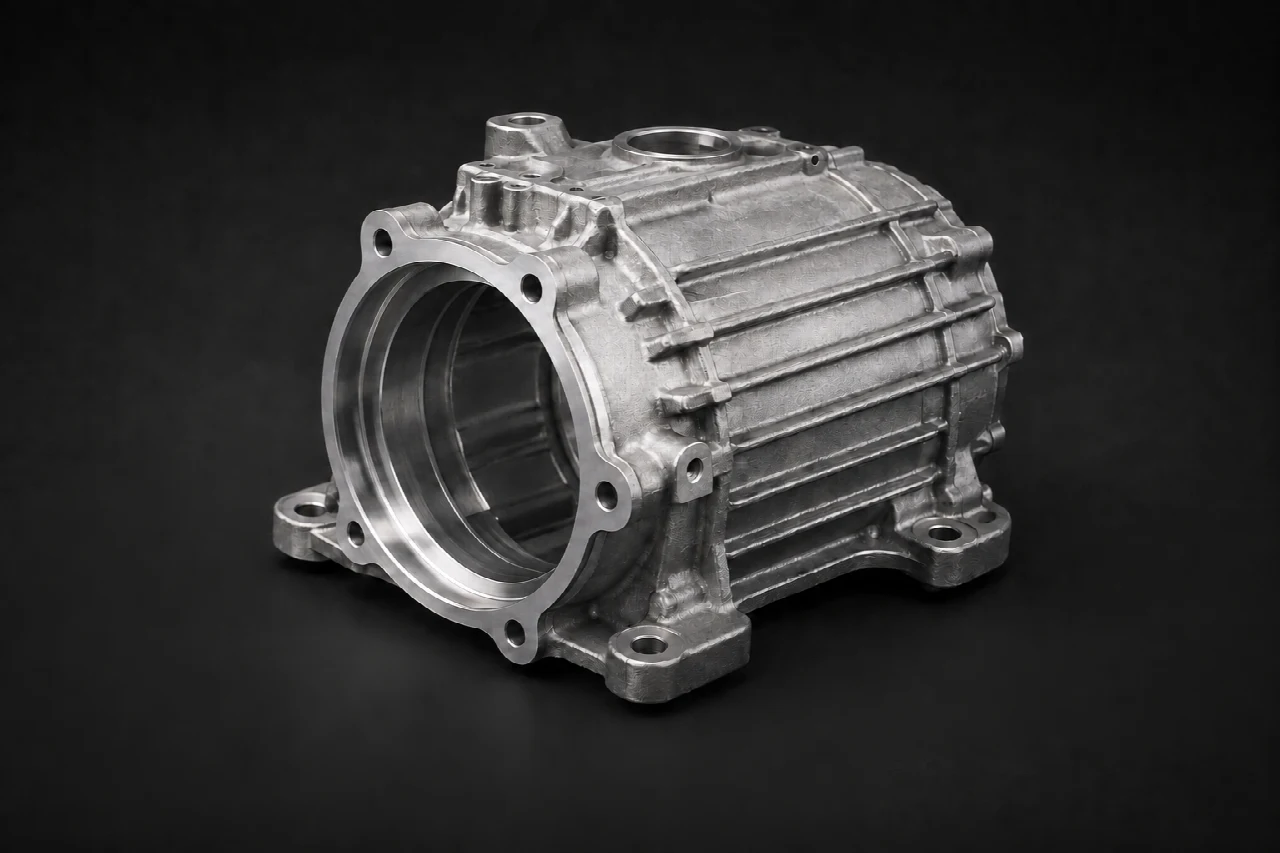

Aluminum die casting for housings, covers and integrated components, with alloy, machining and finish selected for the part requirements.
Explore alloy
Fine detail & decorative finishes
Zinc Die Casting

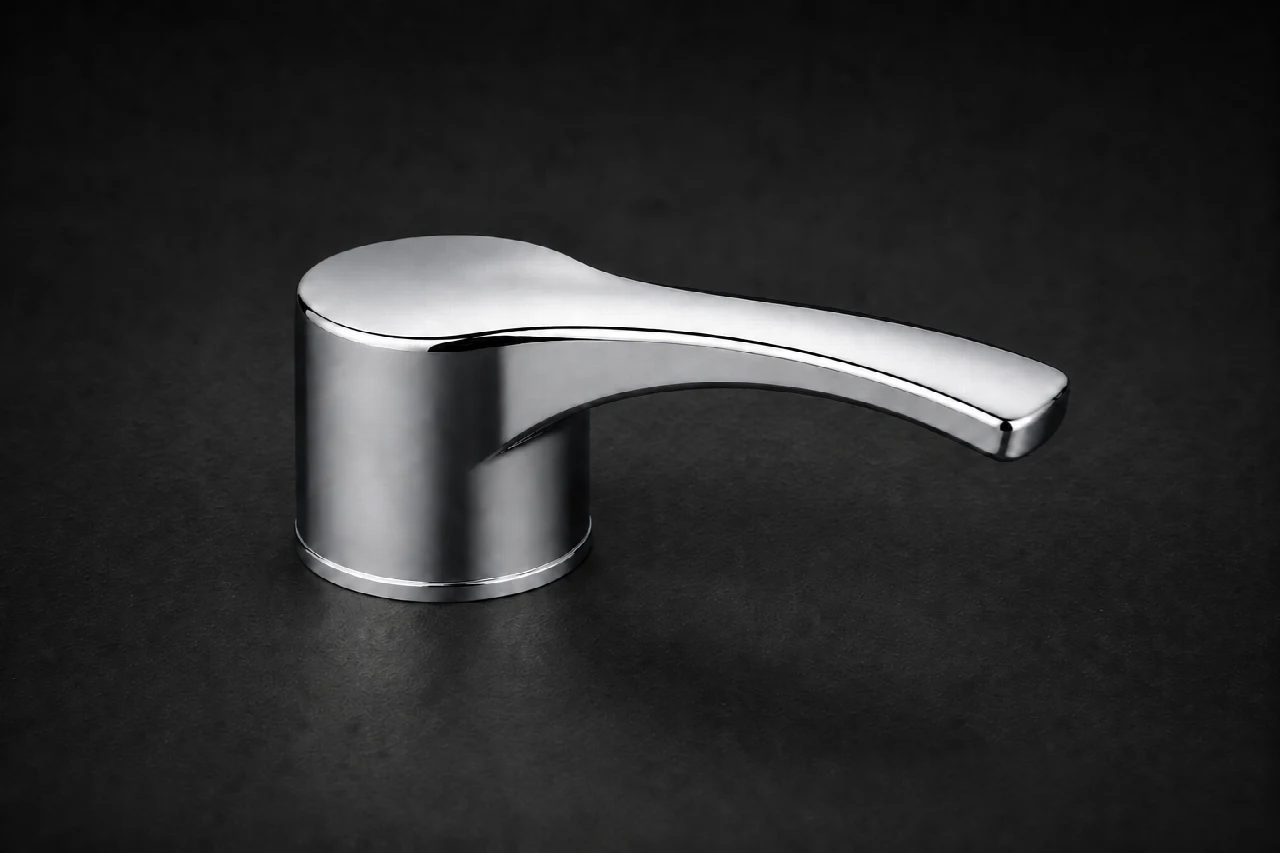

Zinc die casting for detailed housings, mechanisms and hardware, with service temperature, loading, mass and decorative finish reviewed together.
Explore alloy
Lightweight thin-wall design

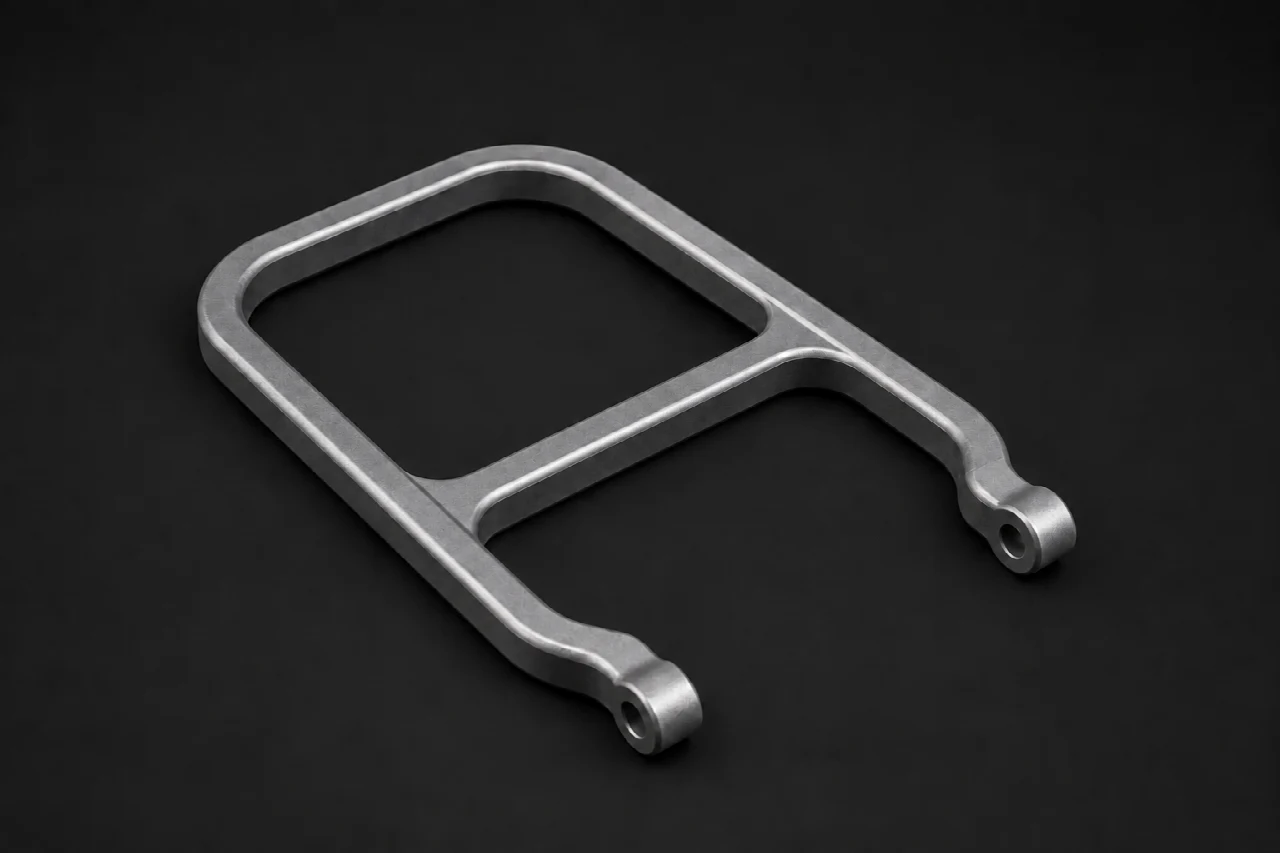

Magnesium Die Casting
Magnesium die casting for weight-sensitive components, with alloy, stiffness, corrosion protection and production requirements assessed together.
Explore alloy
Application-specific performance

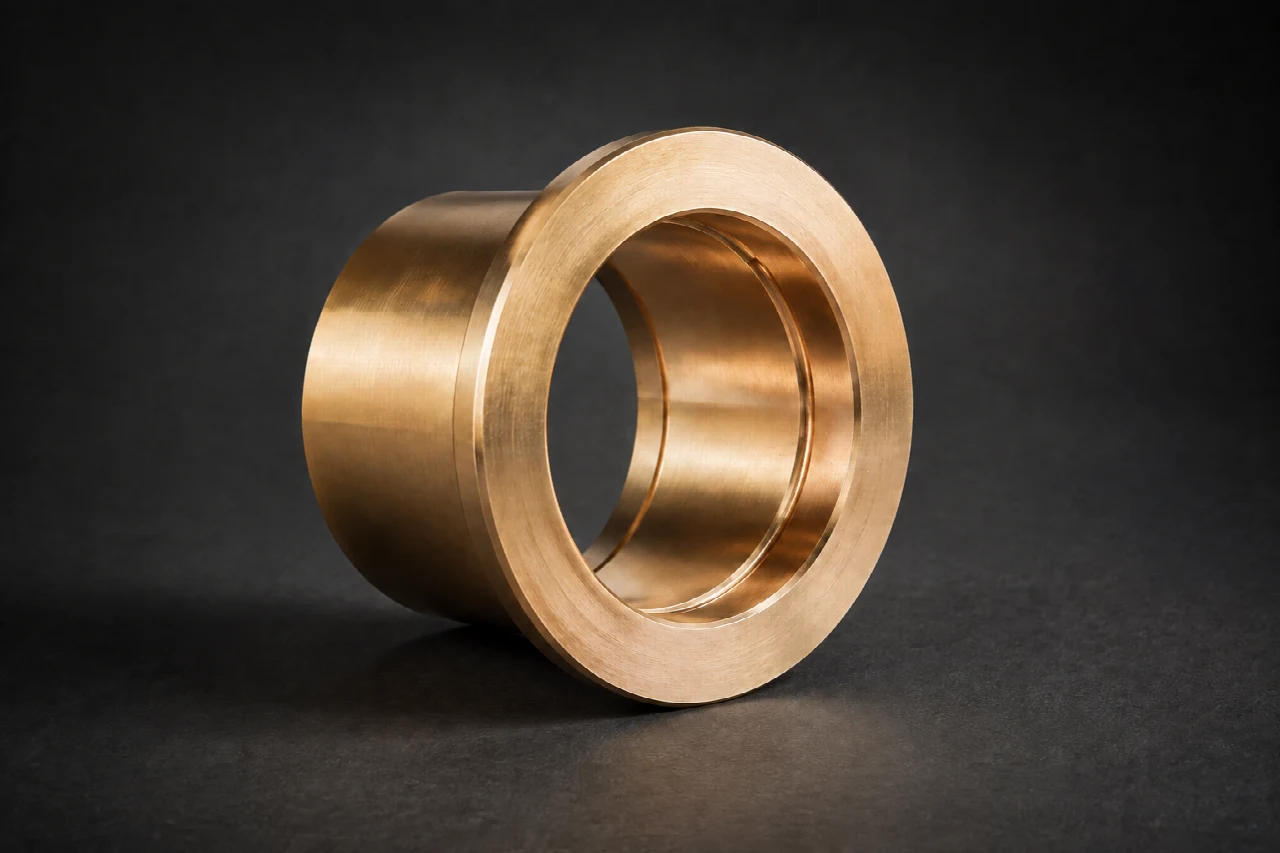

Copper Alloy Die Casting
Copper alloy die casting based on the exact grade, component function and process requirements, including tooling, machining and inspection.
Explore alloy
Manufacturing capabilities
Manufacturing Capabilities
Select individual services or combine tooling, casting, machining, finishing and assembly under an agreed drawing revision, quality plan and delivery schedule.
01 — PRODUCTION FOUNDATION

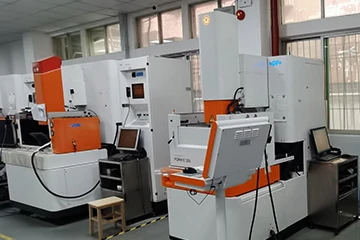

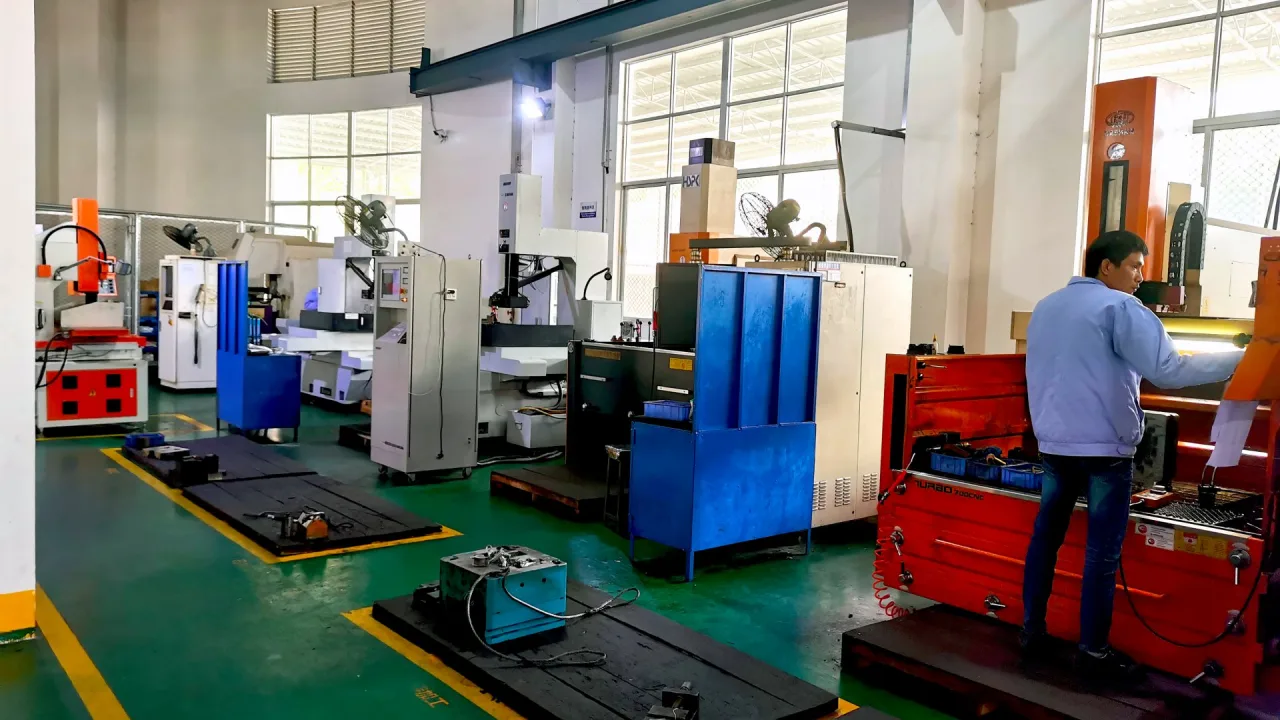

Mold & Die Tooling
Design for manufacturability (DFM), tool manufacture, trials and maintenance planning.
Explore tooling →
02 — NEAR-NET SHAPE

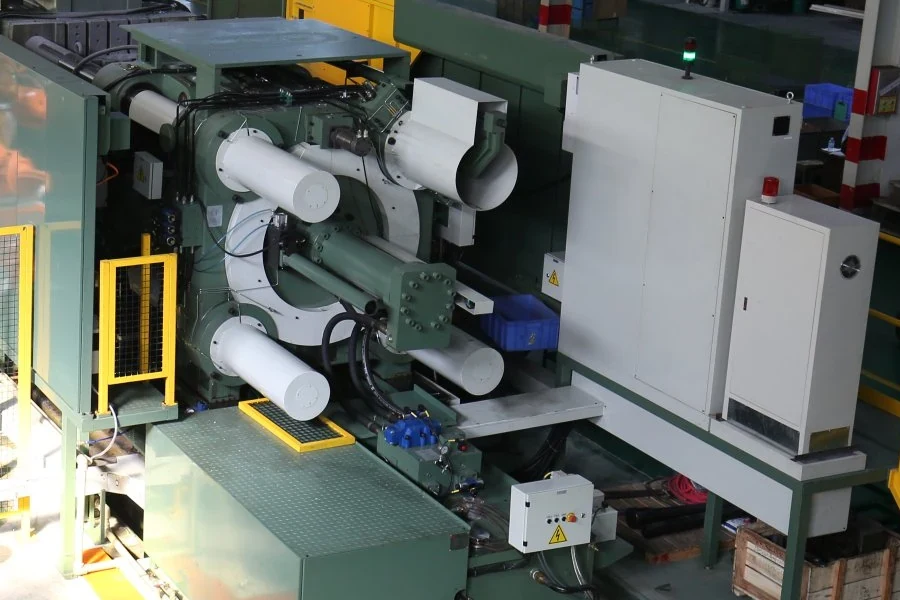

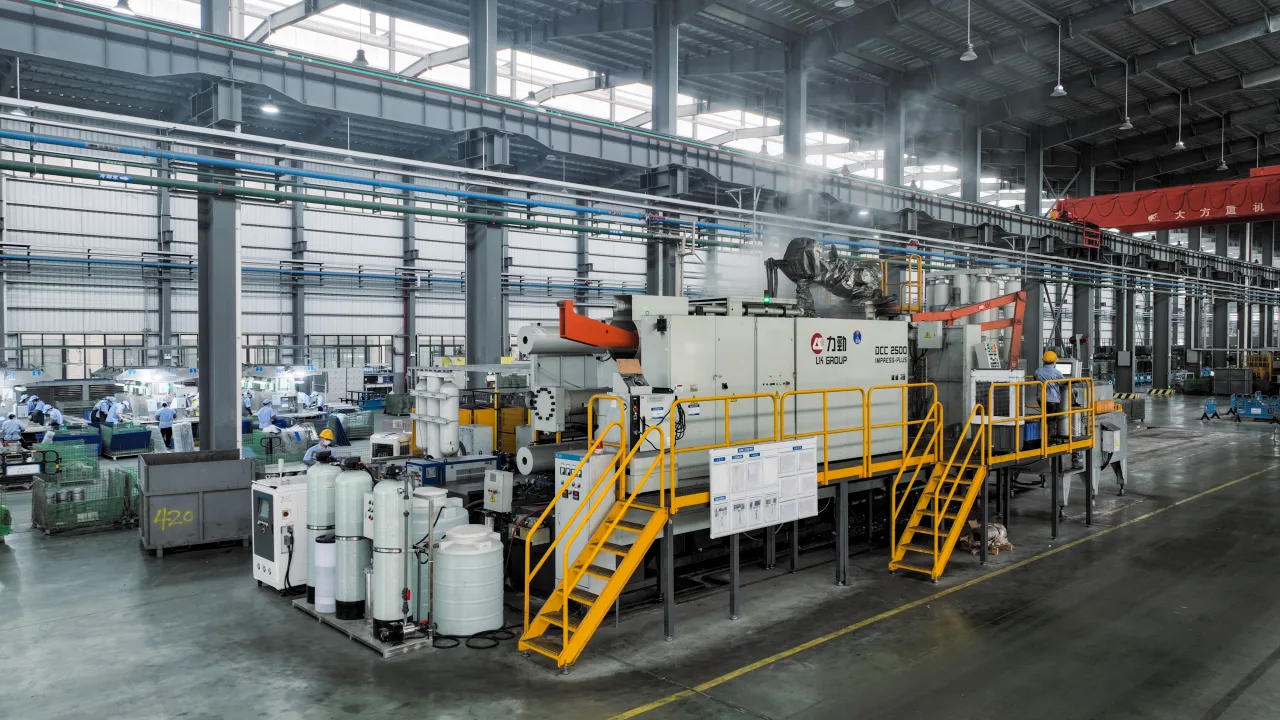

Die Casting
High-pressure die casting (HPDC) of aluminum and zinc production components.
Explore casting →
03 — PRECISION

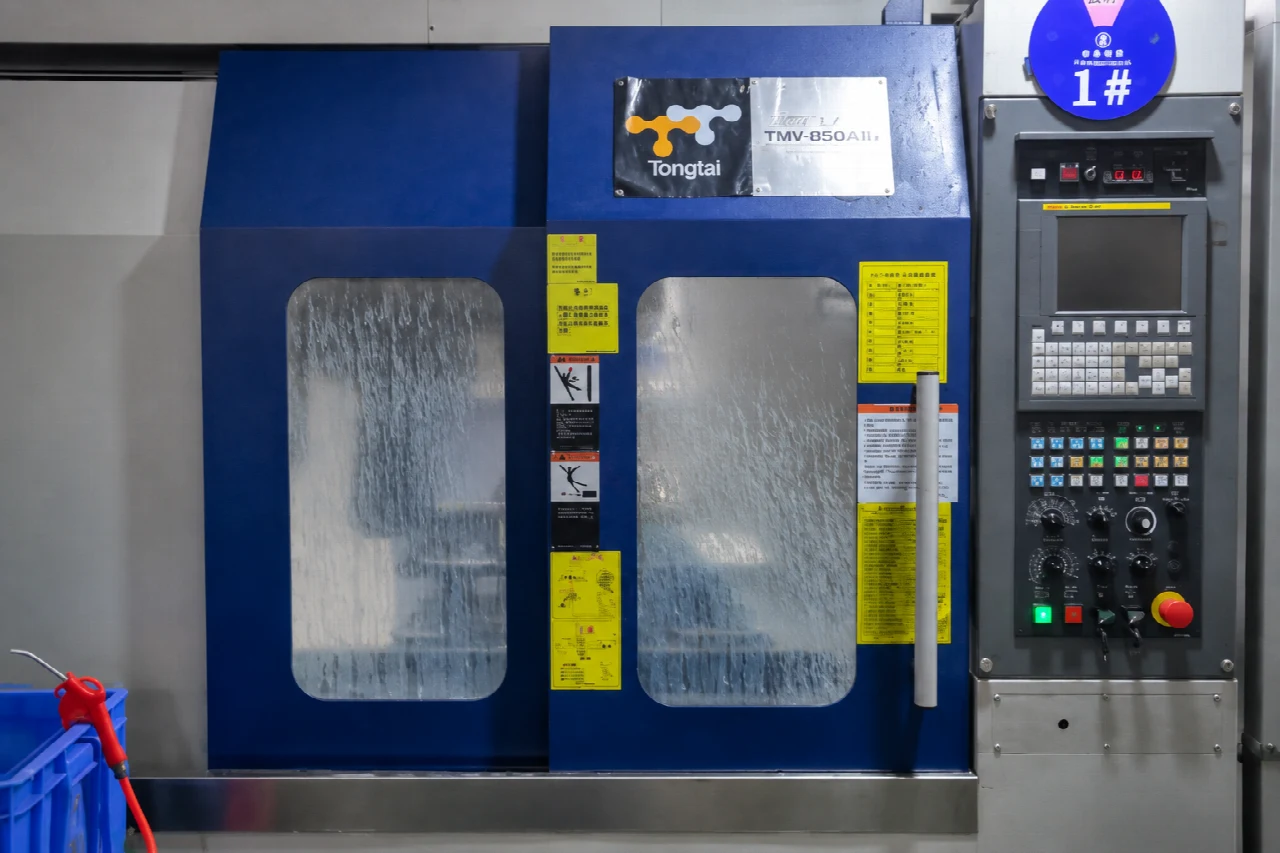

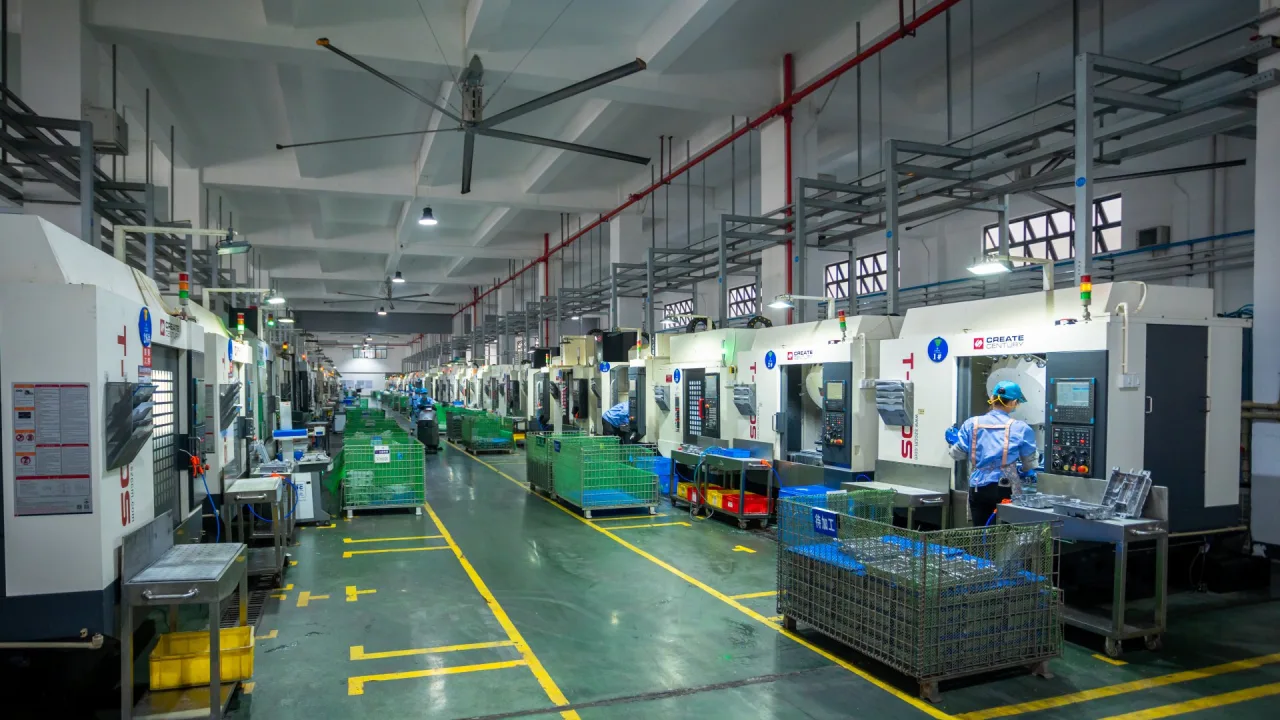

CNC Machining
Milling, turning and multi-axis machining of functional features.
Explore CNC →
04 — PROTECTION & APPEARANCE

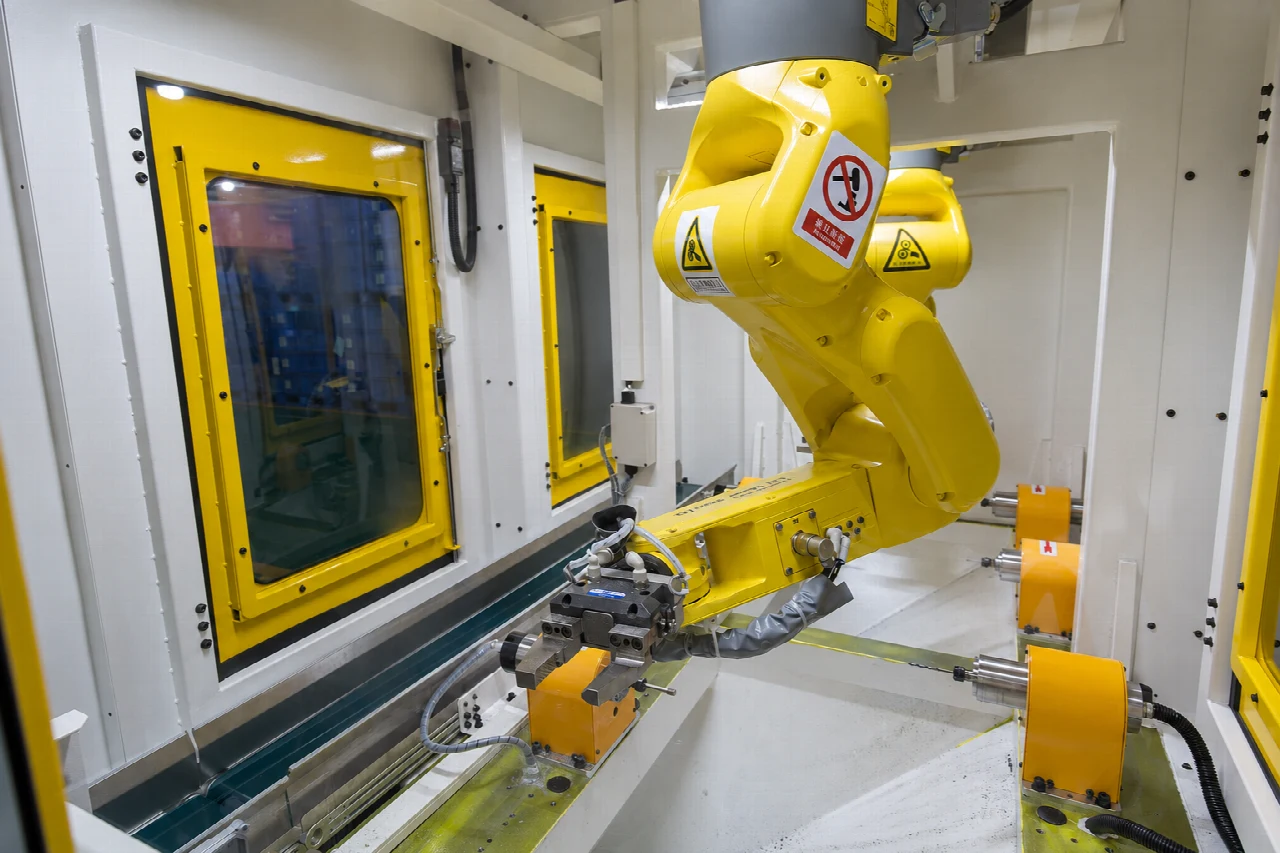

Surface Finishing
Coating selection, masking and specification review for functional and cosmetic requirements.
Explore finishes →
05 — FINAL INTEGRATION

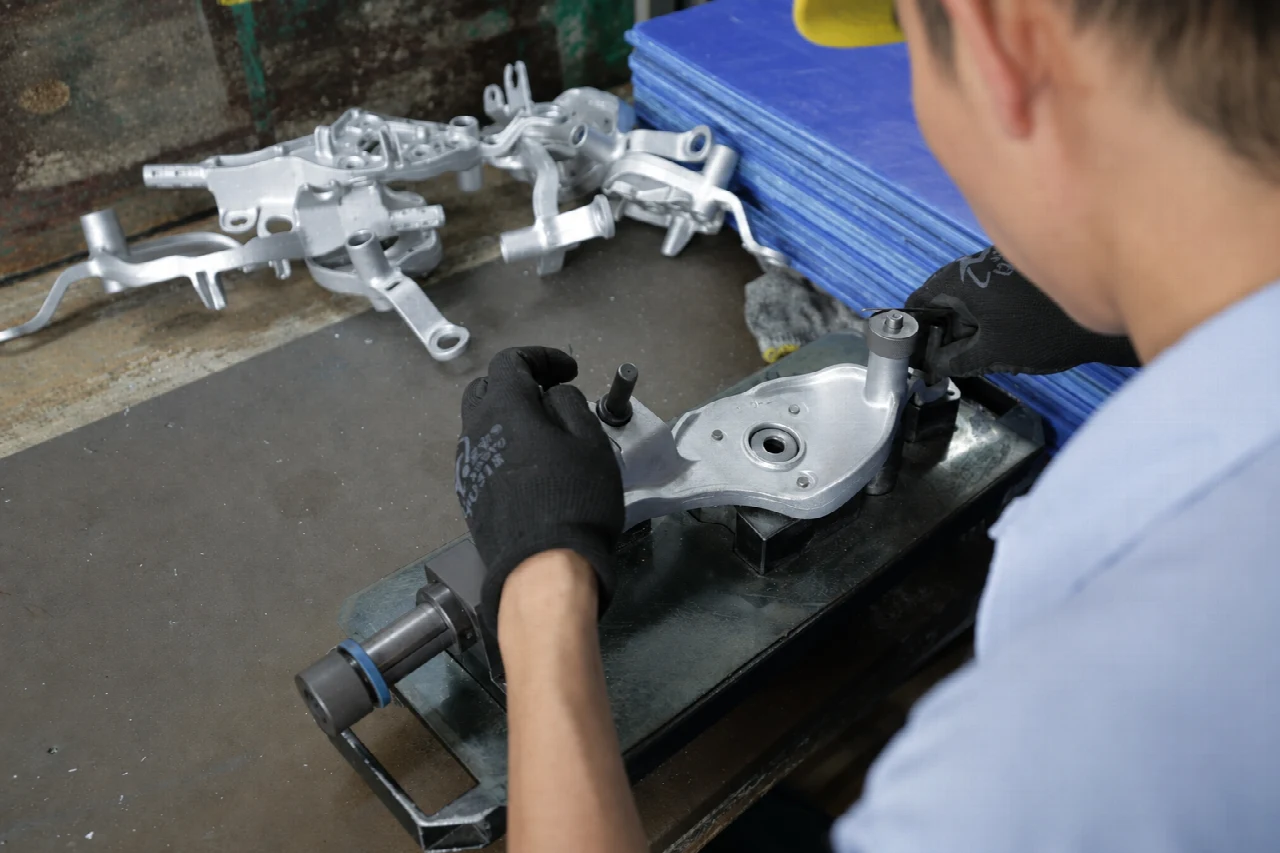

Product Assembly
Controlled fastening, fit checks, identification and packaging.
Explore assembly →
Process coordination
Integrated Manufacturing
Tooling, casting, machining, finishing and assembly are planned against the same part requirements. Review tooling design, critical features, coating thickness and assembly interfaces before production release.
- Tooling strategy
- Critical datums
- Finish interfaces
- Assembly controls
Forming & Machining
- Engineering Files
- Tooling
- Die Casting
- CNC Machining
Finishing & Delivery
- Surface Finishing
- Product Assembly
- Inspection
- Packaging
Dimensional & material inspection
Inspection Equipment
Dimensional measurement, material analysis and visual inspection support checks against your drawing and agreed inspection plan.

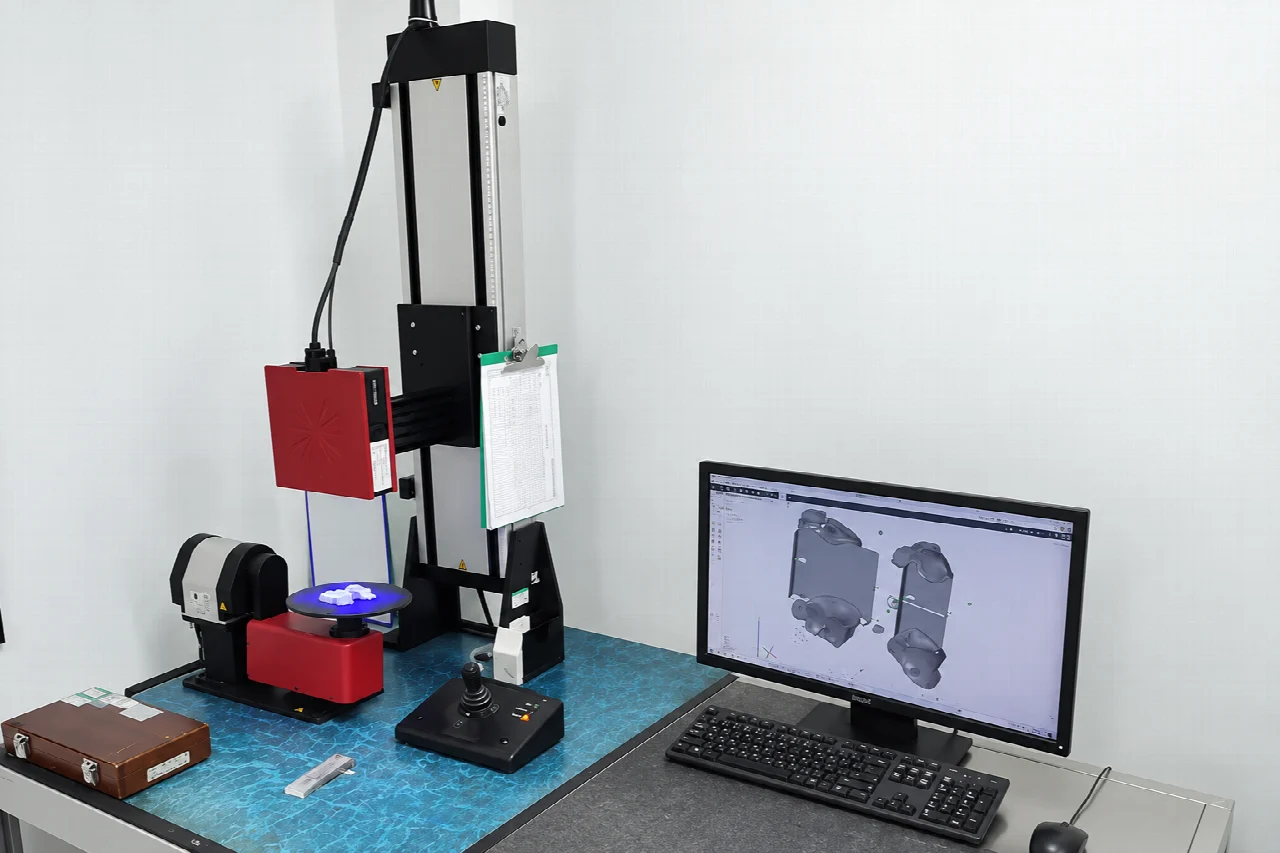

3D Optical Scanner
Captures surface geometry for part-to-CAD comparison and dimensional review.

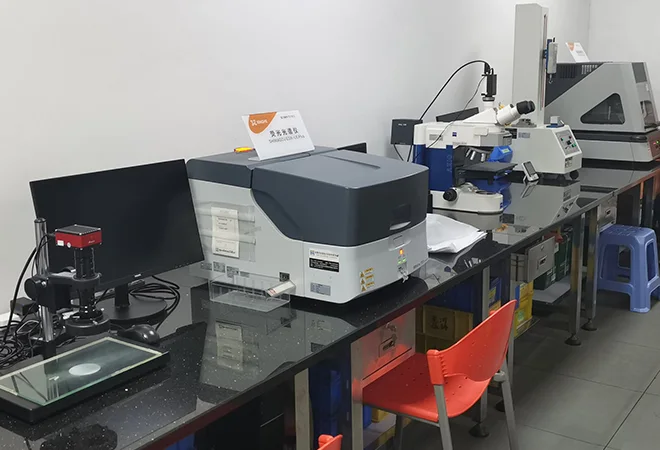

Spectrometer
Analyzes elemental composition to support alloy identification and material checks.

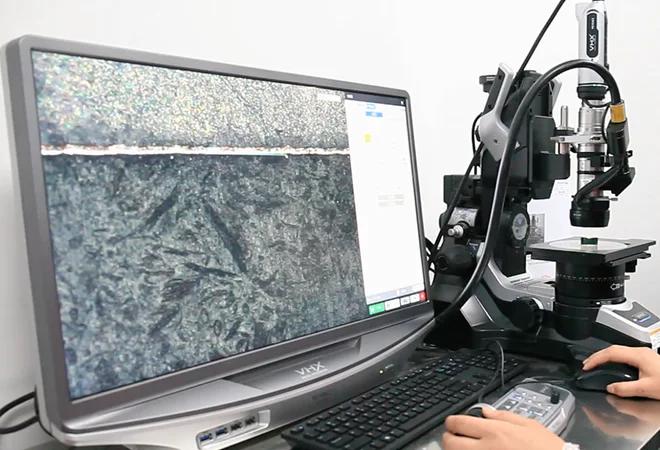

Digital Microscope
Magnifies surfaces and fine features for visual examination and documentation.
Production planning
Engineering Support
Review geometry, material, tooling and inspection requirements to prepare a component for production.
DFM review
Geometry, material, tolerance and volume considered together
Tooling & setup
Production route prepared around the agreed part requirements
Secondary operations
Machining and finishing focused on functional features
Inspection planning
Critical characteristics identified before production
Engineering applications
Industry Applications
Robotics
Housings, brackets, joints and end-effector components manufactured to specified weight, fit and alignment requirements.
Optical Communications

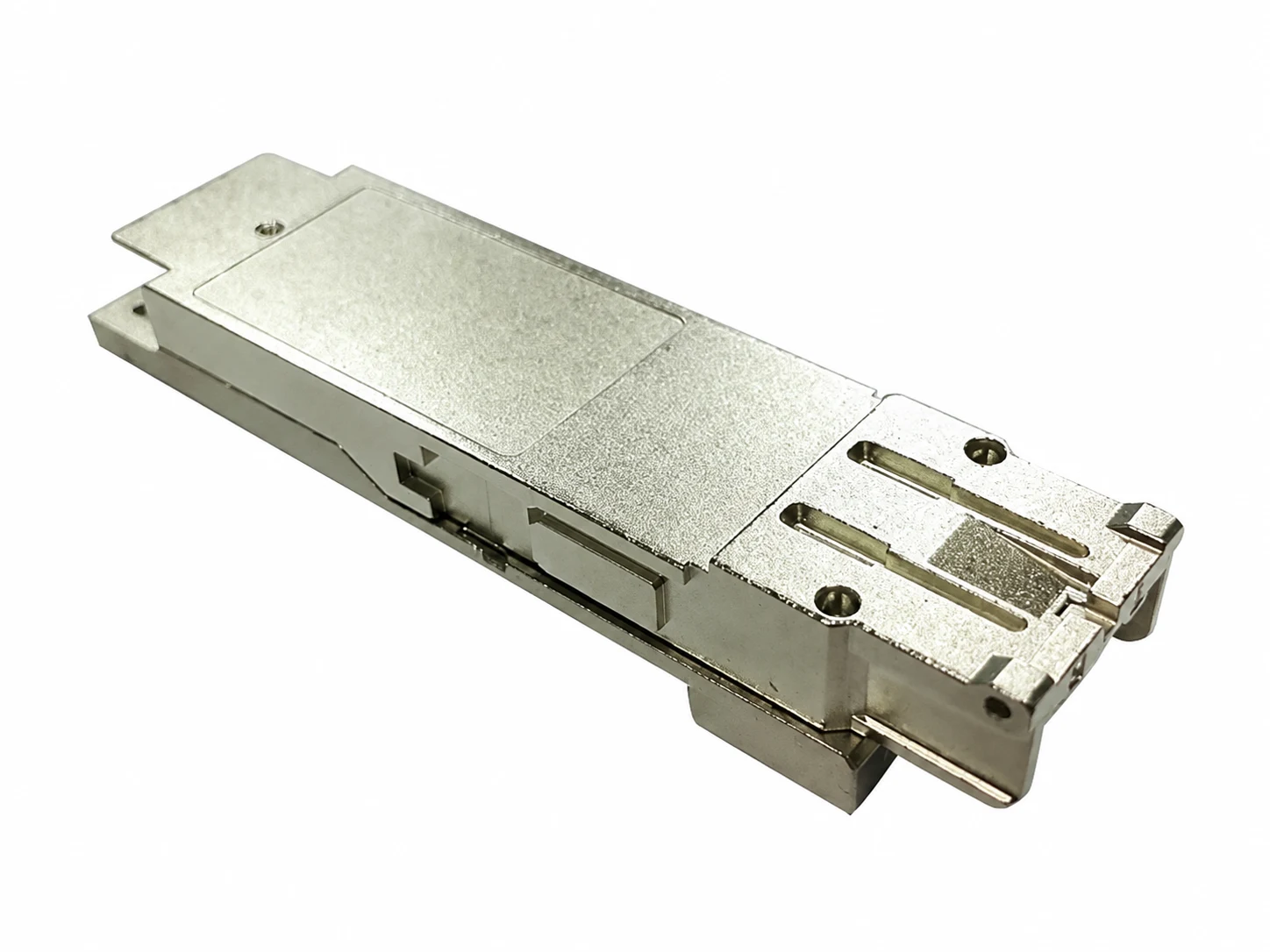

Optical transceiver housings, covers and precision metal components for optical communications equipment.
New Energy Vehicles
Motor housings, power control enclosures and charging equipment components.
Electromechanical

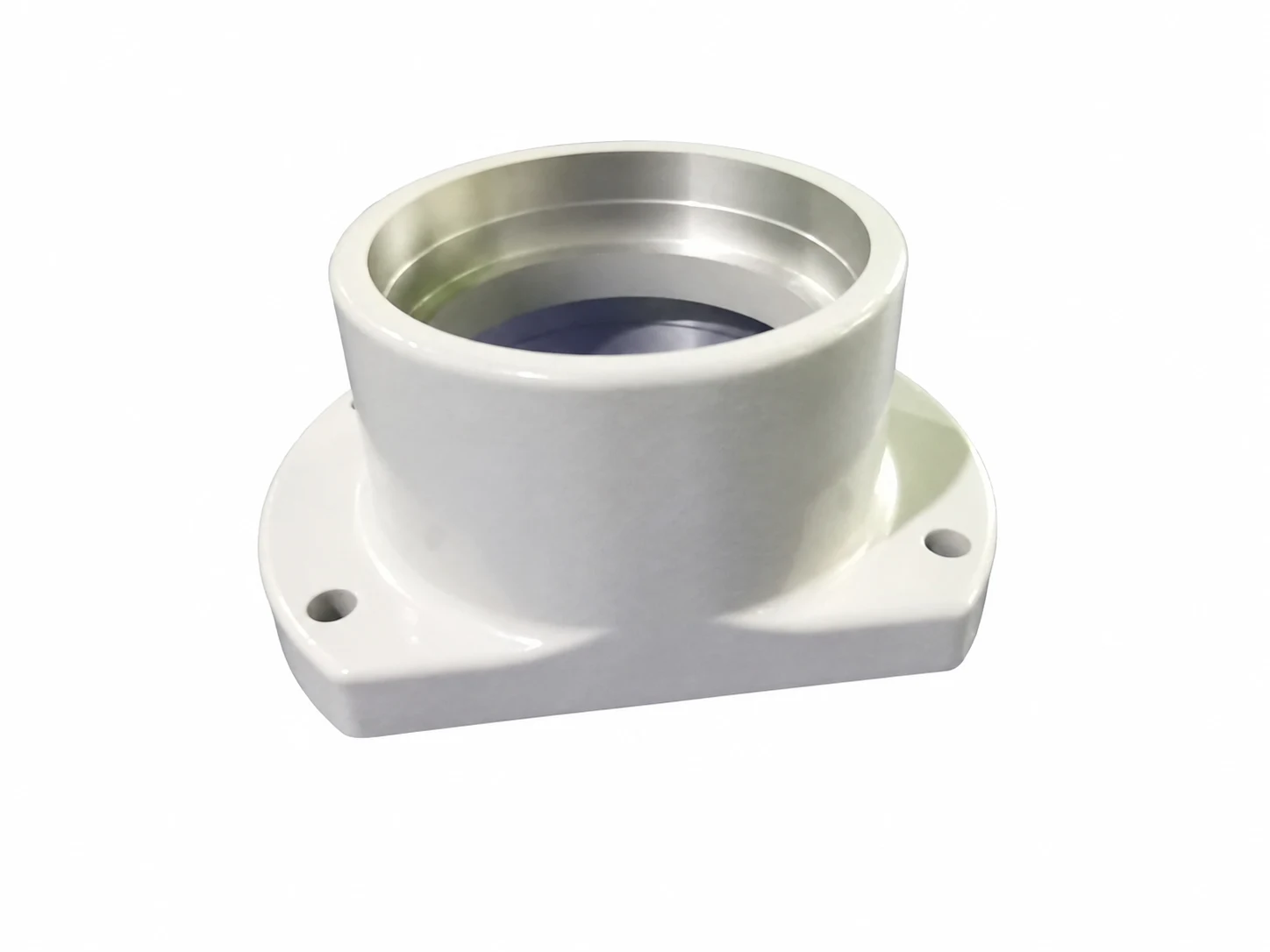

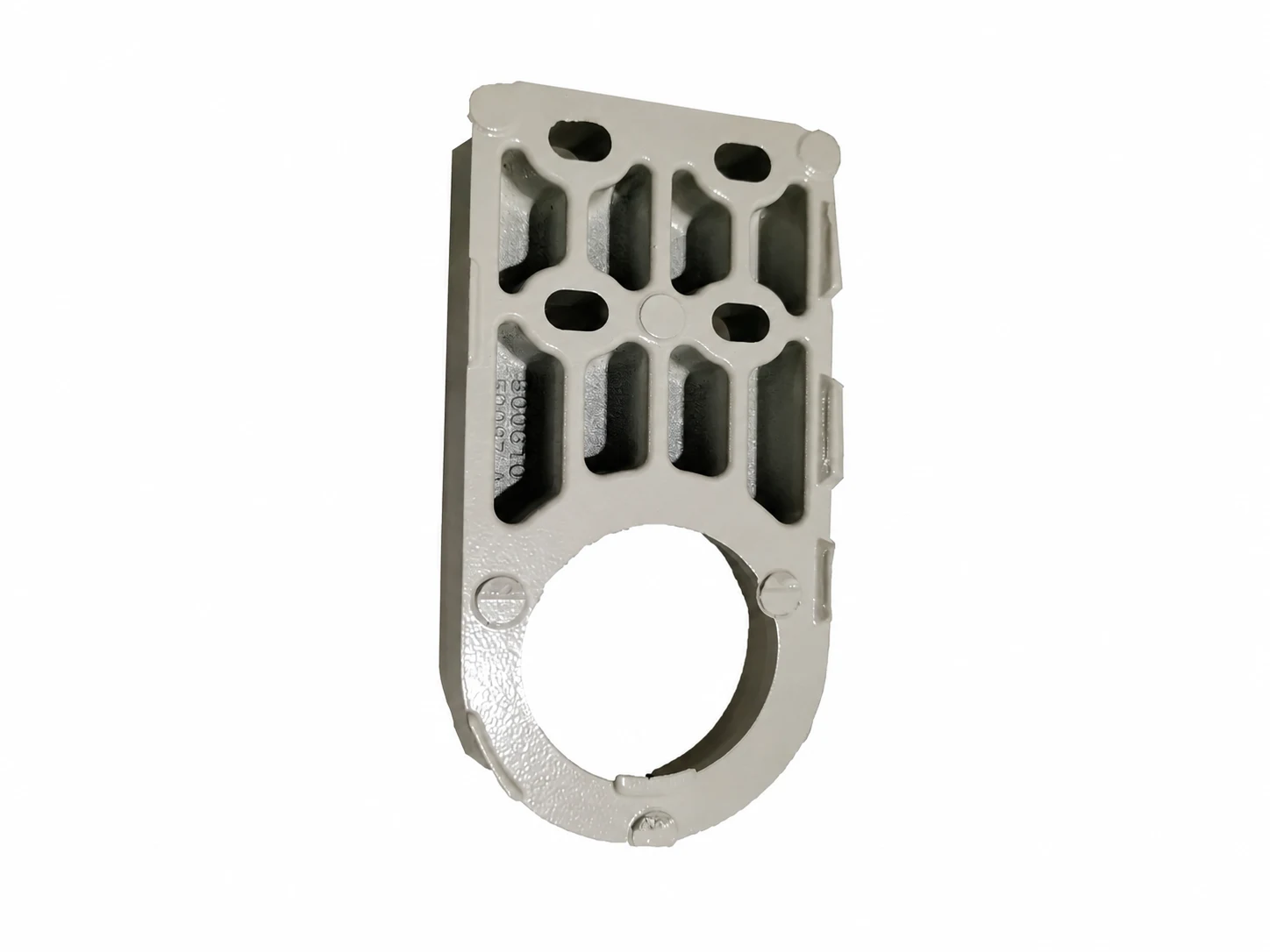

Rotating supports, bearing housings, end covers and control panels for electromechanical systems.
Telecommunications Equipment

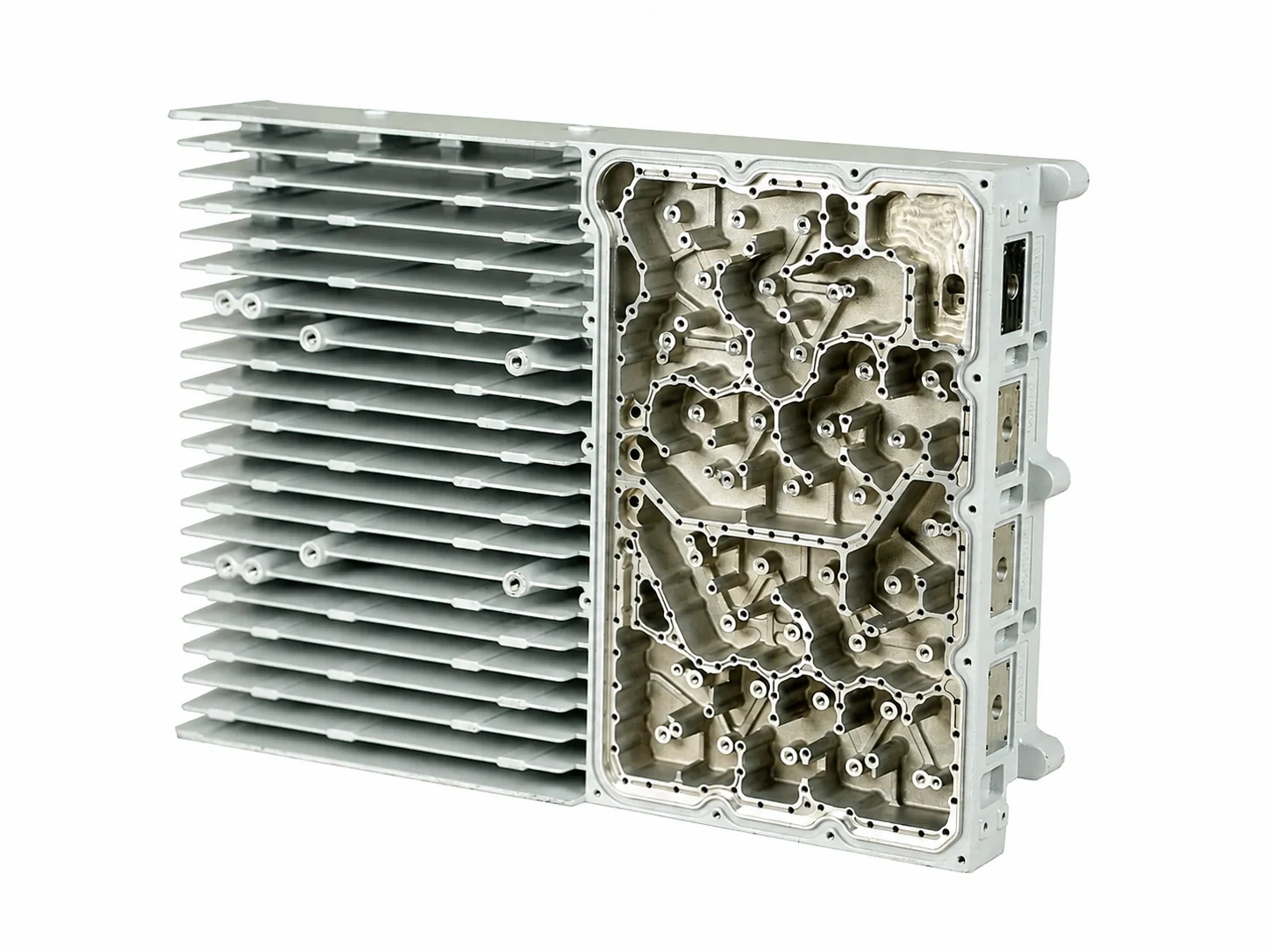

Equipment housings, junction boxes and heat sinks for telecommunications systems.
Why ZAODA
Why Choose ZAODA
Our team coordinates engineering review, manufacturing and inspection against your drawing, production volume and delivery requirements.
10+ Years of Team Experience
Our team brings more than 10 years of industry experience to die casting and component manufacturing.
Integrated Manufacturing
Tooling, die casting, CNC machining, surface finishing and assembly coordinated around your part requirements.
Engineering-Led DFM
Geometry, material, tolerances, finish and volume reviewed together to identify manufacturing risks before production.
Inspection & Traceability
Critical characteristics, inspection records and traceability requirements agreed for your project and checked before shipment.
Flexible Production
Support from sample validation to batch production, with the manufacturing route planned around your geometry and volume.
Confidential File Handling
RFQ drawings and technical files are stored privately. Staff downloads require authentication and are logged.
Five capabilities, one production route
ZAODA coordinates tooling, die casting, CNC machining, surface finishing and product assembly to meet the drawing, inspection and delivery requirements of each project.
Define the project requirements
Share the current drawing and model, material specification, order quantities, critical features, finish, tests and required records. The engineering review establishes the proposed manufacturing process and quotation basis.
Choose the route by the component function
A heat sink, a bearing housing and a visible hardware connector need different manufacturing decisions. Start with the function, then connect tooling, casting, machining, finishing and acceptance in one route.
| Decision area | Information to define |
|---|---|
| Thermal part | Contact pads, heat path and final assembly conditions |
| Rotating assembly | Bearing axes, locating faces and machining datums |
| Sealed enclosure | Pressure boundary, gasket lands and final test |
| Visible hardware | Mating fit, appearance zones and coating build |
Send the mating interface and operating requirements with the drawing so the proposal can address the finished component.
Engineering resources
Engineering Resources
Technical guides cover design for manufacturability, tooling, casting defects, machining, finishing, inspection, cost and RFQ preparation.
Browse all resources →
Die Casting
Transferring Die Casting Tooling to a New Supplier
Transferring die casting tooling requires a technical restart plan as well as physical shipment.
Read engineering guide →
Die Casting
Die Casting Design for Optical Transceiver Housings
Optical transceiver housing design connects thermal contact, electromagnetic shielding, mechanical retention and host-interface dimensions.
Read engineering guide →
Die Casting

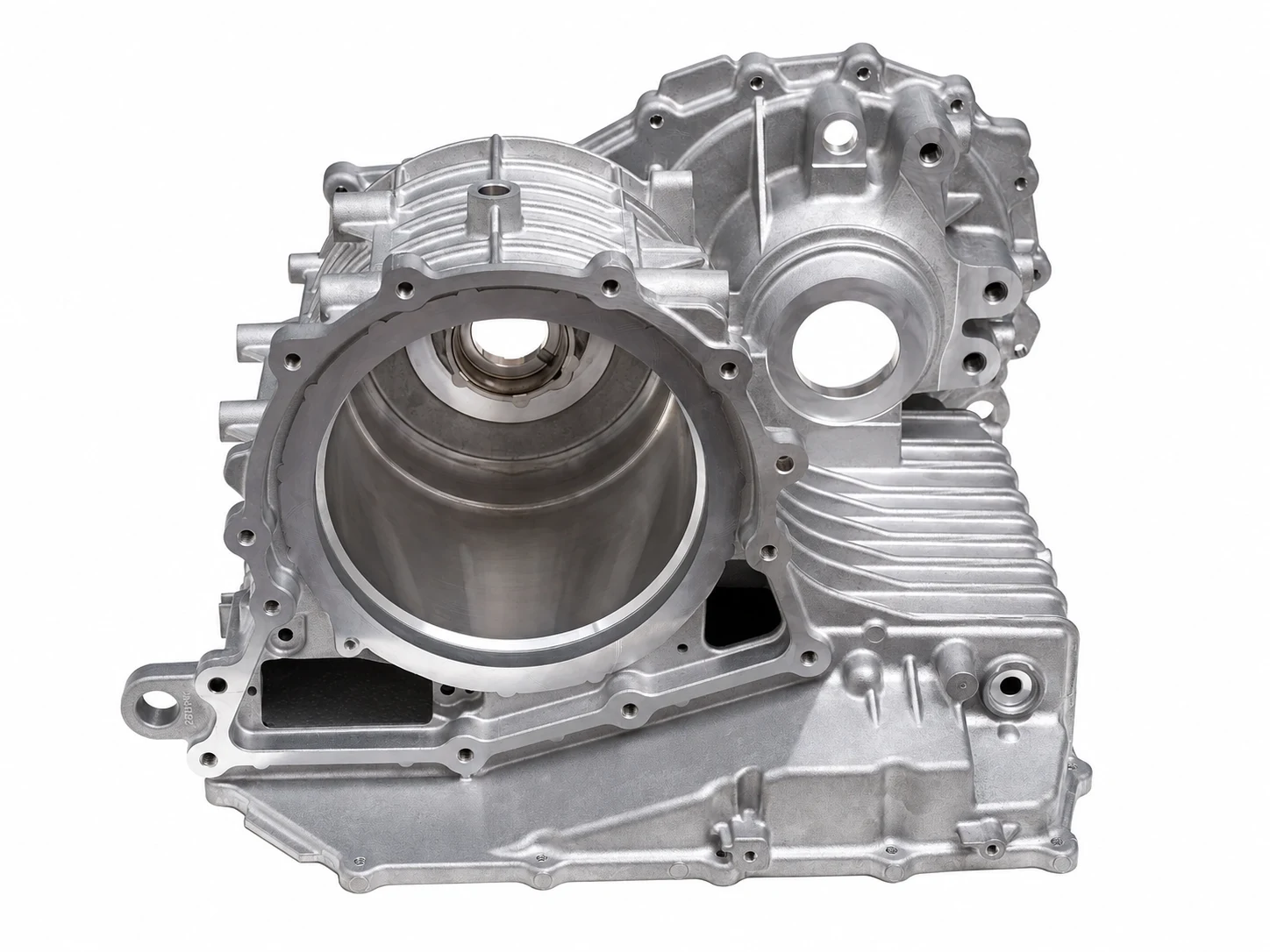

Bearing Fit Tolerances in Aluminum Motor Housings
